3. Verification Fundamentals

• Verification Plan
• Directed Test Vs Constraint Random Test
• Layered Testbench Architecture
• Individual Components of Layered Architecture

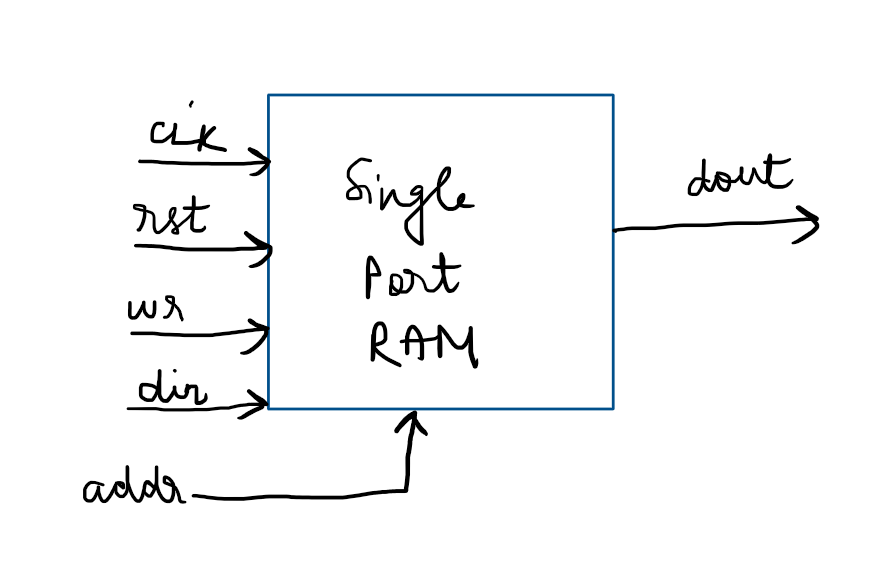

Understanding Verification Plan

Sr no.	Testcase	Description	Feature Covered
1.	rst_high	Default values for dout when reset is asserted	This verify the behaviour of the dout at the start of operation when reset is high for first few cycles.
2.	rst	reset is asserted during read and write transaction	Dout must hold its initial value whenever reset is asserted in the middle of ongoing transaction
3.	wr	wr is asserted after reset is deasserted	Verify Valid data store in the memory during Write transaction
4.	wr	wr is asserted when rst is asserted	Data should not be added to the Memory
5.	wr_low	wr is deasserted when reset is deasserted	dout must return valid value store during previous write transaction
6.	wr_low	wr is deasserted when reset is asserted	dout must stay at zero
7.	wr_low	wr is deasserted when rst is deasserted	reading data from address without valid data, dout must return zero

Testcase Name	Summary	Description	Weight	Goal	Covergroup	Specification
apb_slv_error_test	Test error response functionality	Generate address that are outside of Address space of DUT. Generate write and read operation with wrong address and poll for slave err response signal (PSLVERR)to go high. The test passes if DUT can detect the Address out of the bound error and set PSLVERR signal to high. Run this testcase with APB_SLV_WAIT_FUNC_EN = 1 user define. The min and max wait delays can be defined using APB_SLV_MIN_WAIT_CYC and APB_SLV_MA_WAIT_CYC user defines.	1	op_type == READ, WRITE Address = OUT OF BOUND ADDRESS data = patterns	op_type ADDR DATA	APB_Slave_Core_SRAM_Design_Specification.docx
apb_slv_arr_test	Test error response functionality with wait state enabled	Generate address that are outside of Address space of DUT. Generate write and read operation with wrong address and poll for slave err response signal(PSLVERR) to go high. The test passes if DUT can detect the Address out of bound error and set PSLVERR signal to high.	1	op_type == READ, WRITE Address =OUT OF BOUND ADDRESS data = patterns	op_type ADDR DATA	APB_Slave_Core_SRAM_Design_Specification.doc

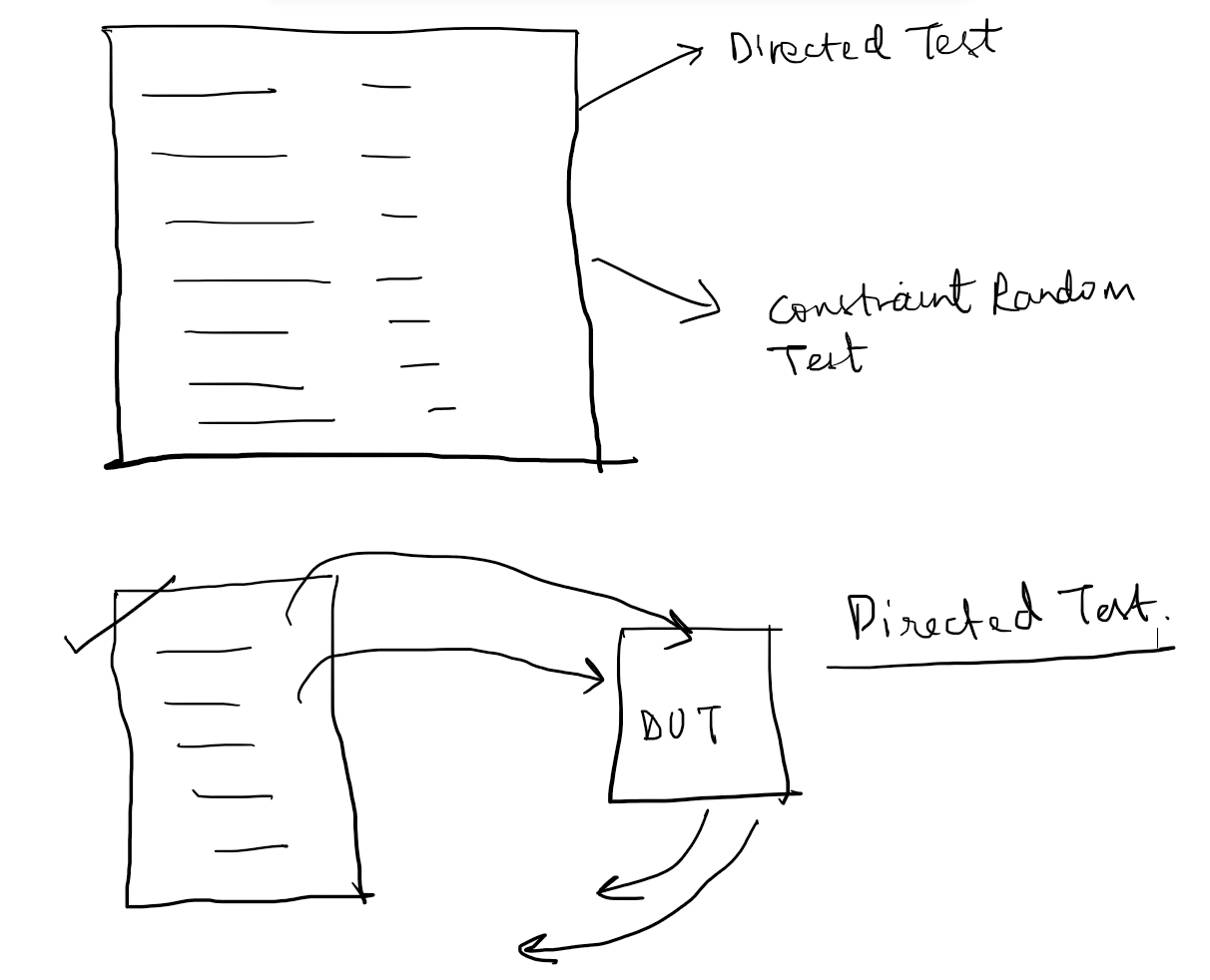

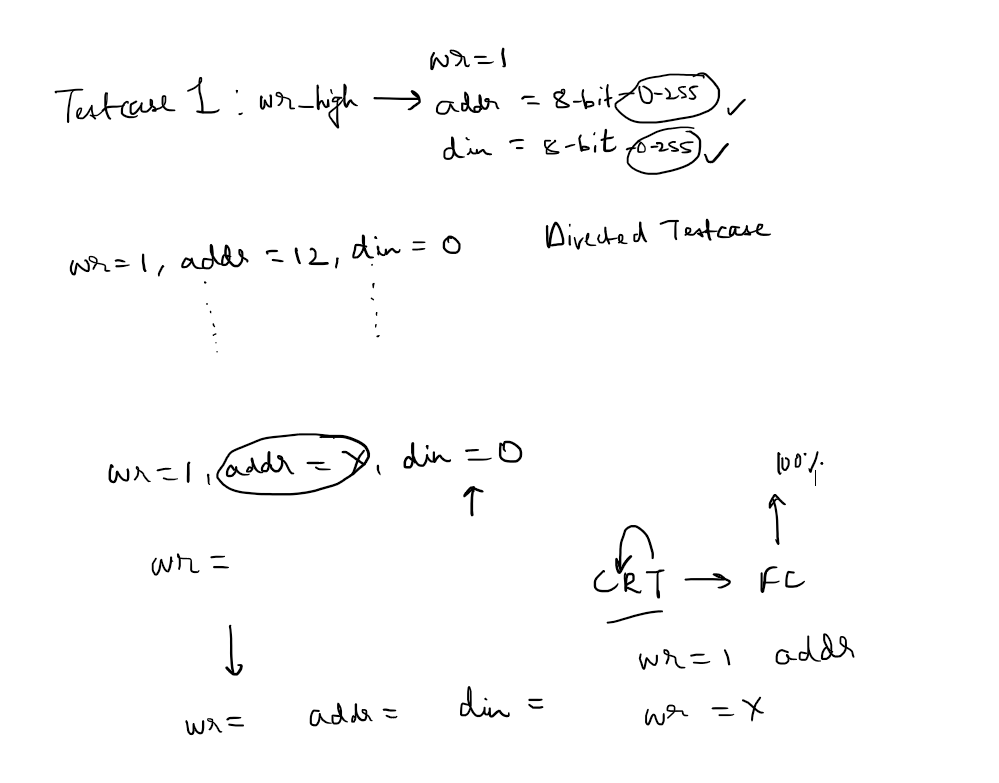

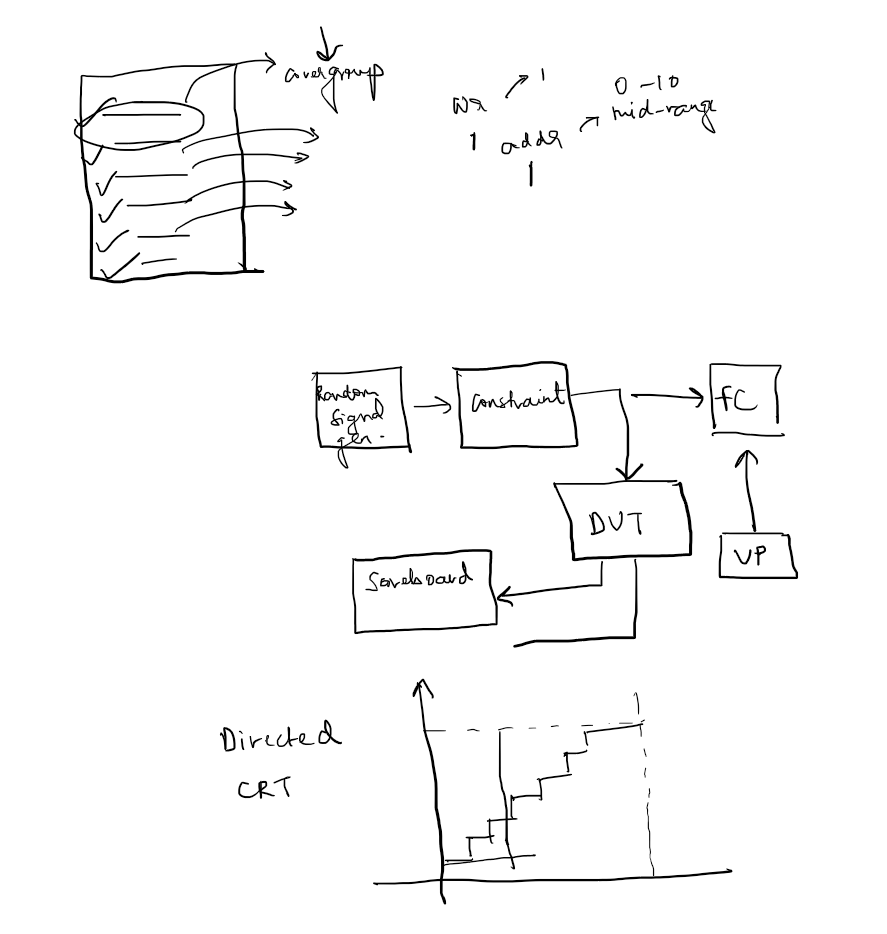

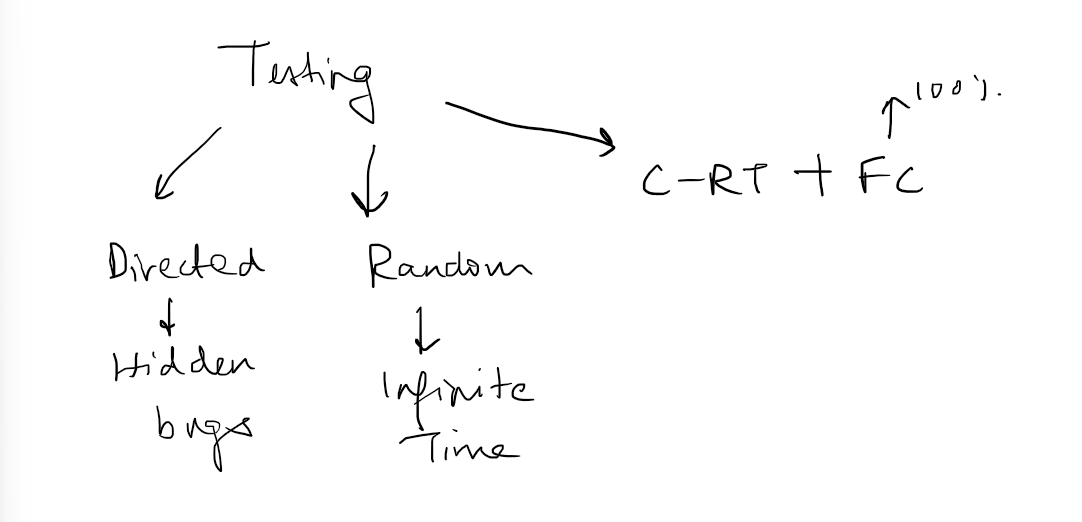

Directed Test Vs Constraint Random Test

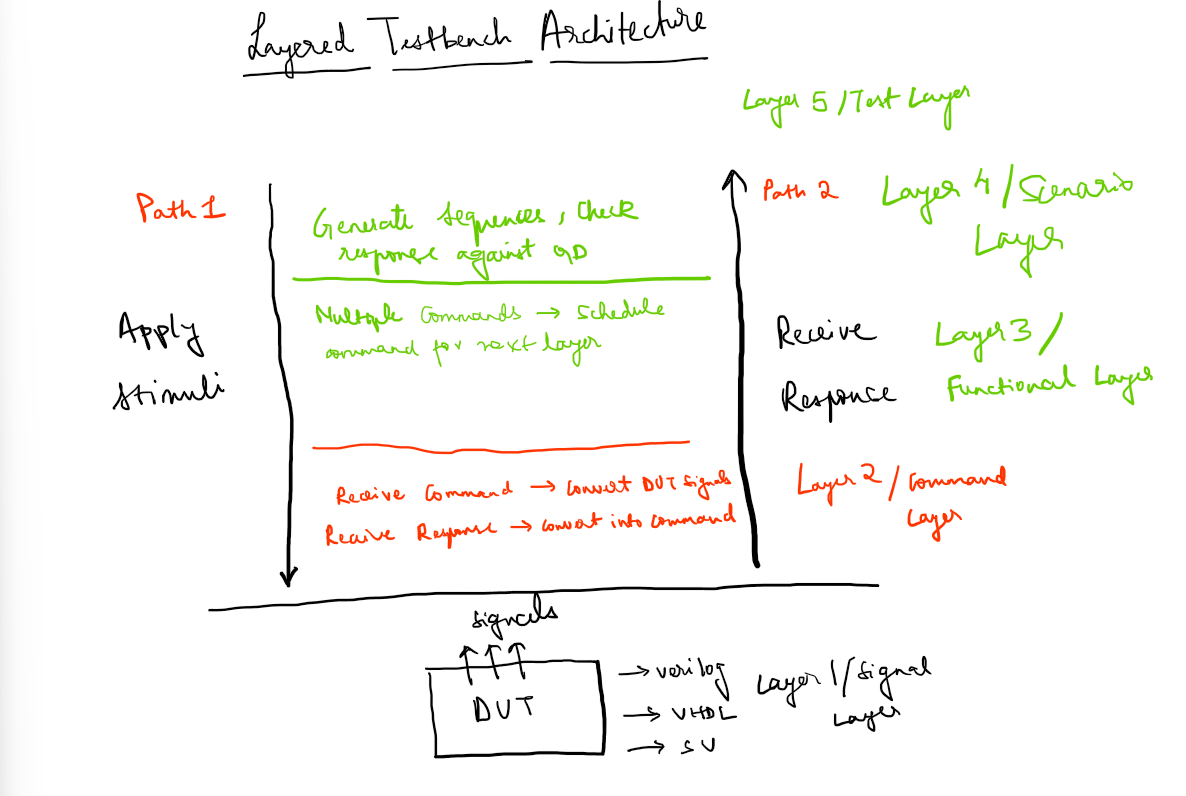

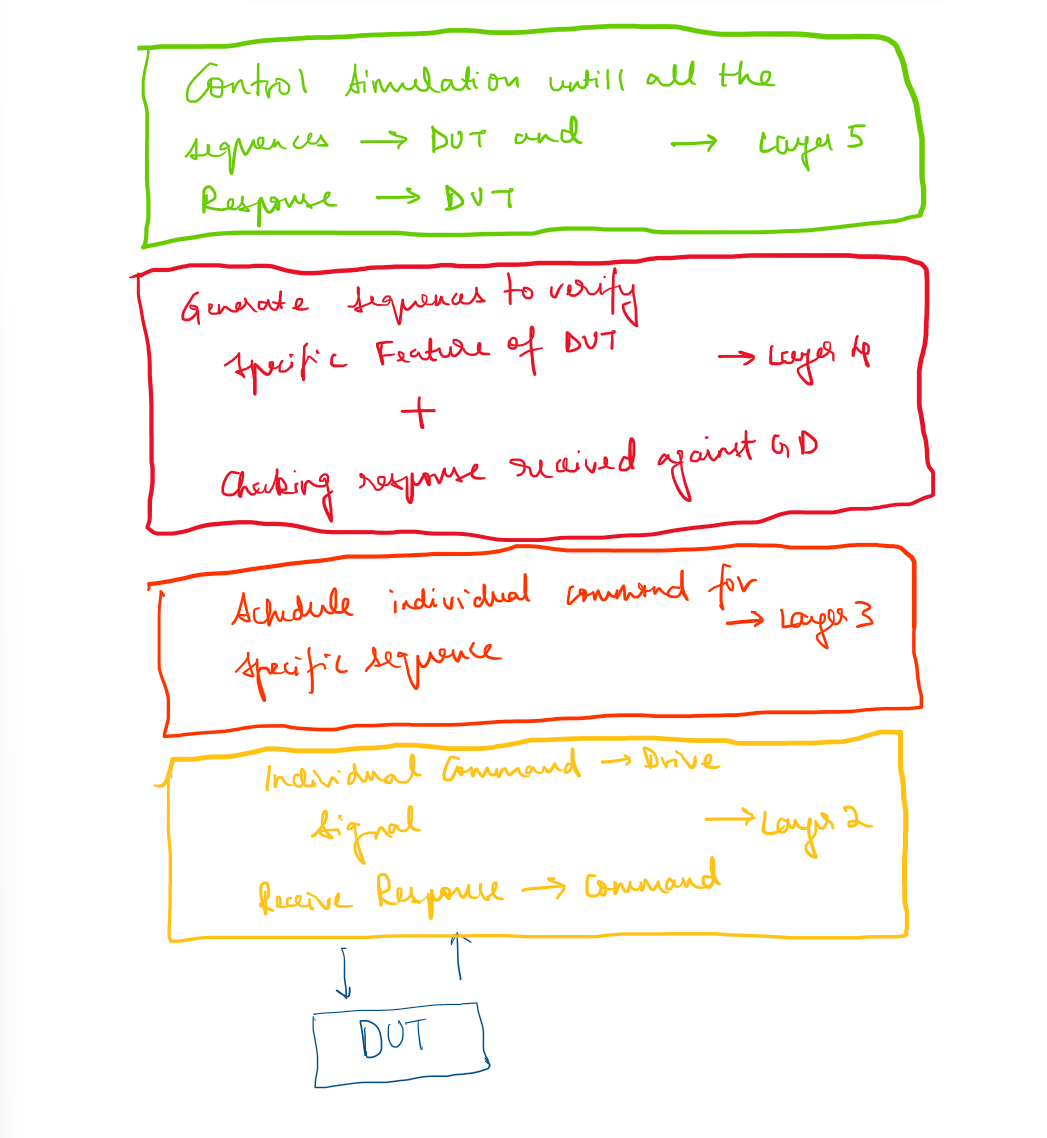

Layered Architecture

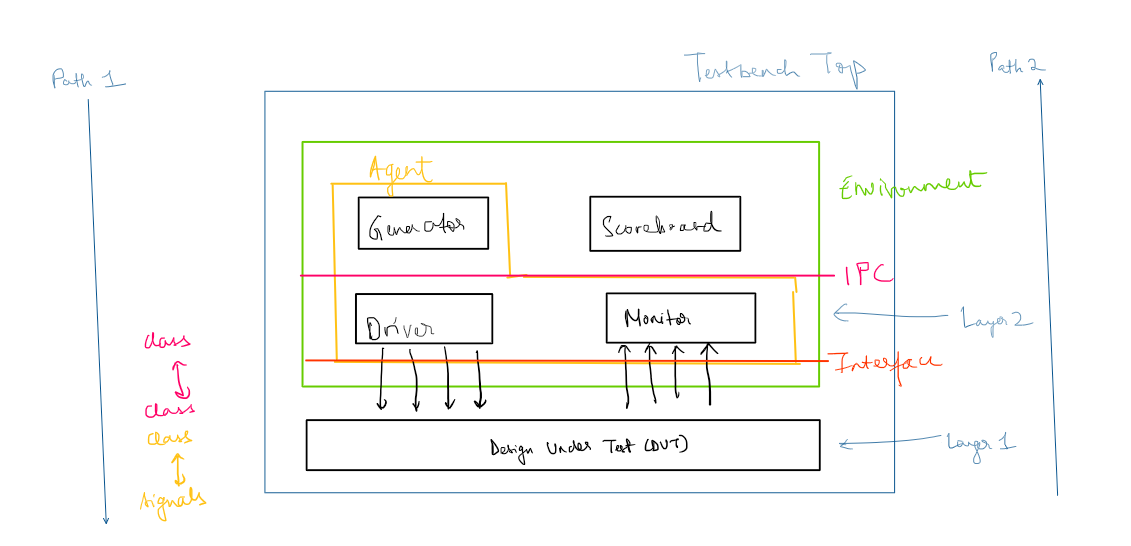

Individual Components of TB

1. Transaction: Contain variables fore all the inputs/outputs port present in DUT to share among classes.
2. Generator: Generate random stimulus and send it to Driver using IPC
3. Driver: Receive Stimulus from Generator and Trigger respective Signals of DUT with help of INTERFACE
4. Monitor: Receive Response from DUT and send it to scoreboard using IPC
5. Scoreboard: Compare response of DUT with Expected / Golden Data
6. Environment: Hold GEN,DRV,MON,SCO together.
7. Test: Hold Env and Control simulation process.
